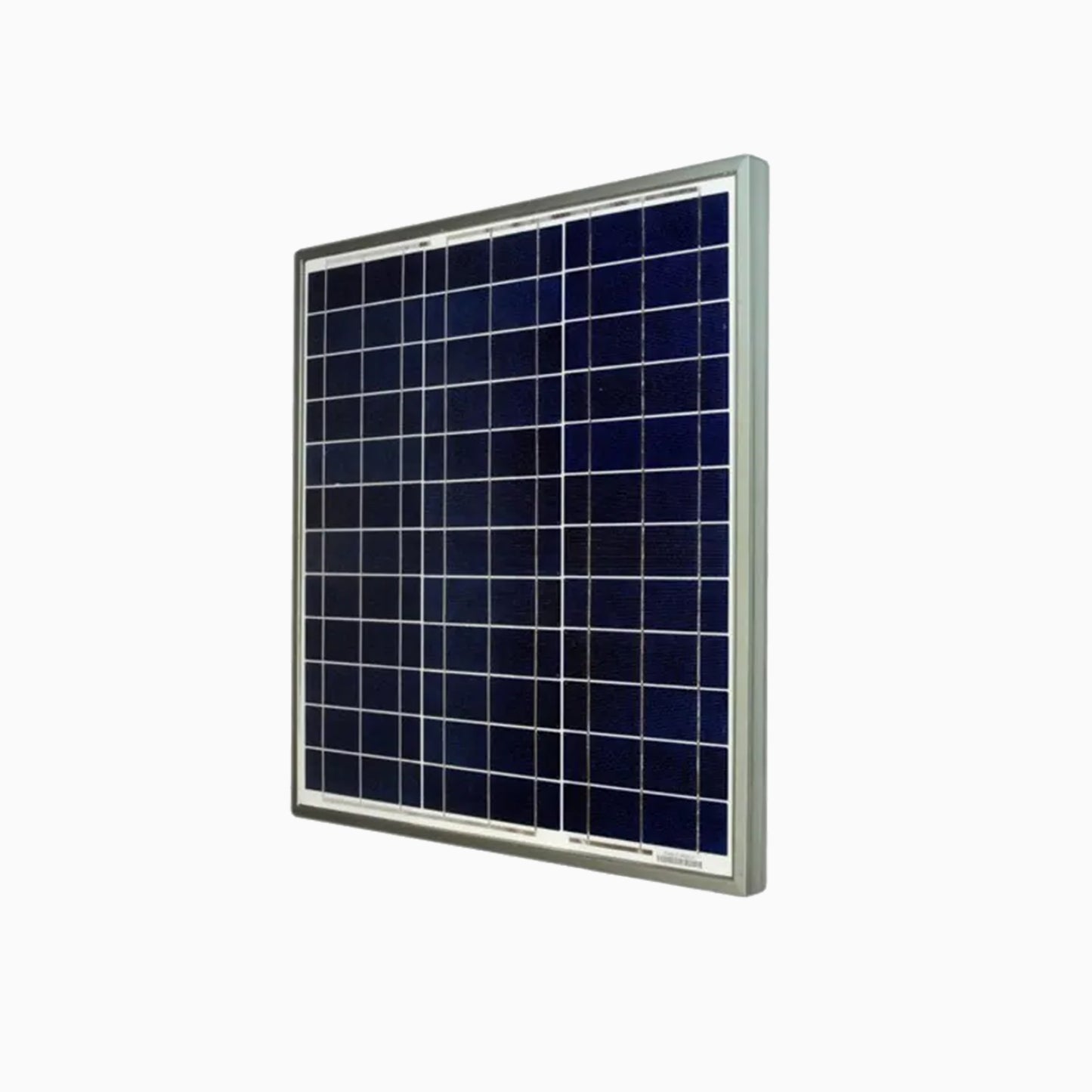

30W - 18V VanderPro Solar Panel
30W - 18V VanderPro Solar Panel
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
per
30W18V | |||||||
TEM NO | 30W18V | ||||||
MONO or POLY | MONO | ||||||
Maximum power(Wp) | 30W18V | ||||||
Maximum power voltage(V) | 18V(+3%) | ||||||
Maximum power current(A) | 1.67A(+3%) | ||||||
Open circuit voltage(V) | 21.6V(+3%) | ||||||
Short circuit current(A | 1.77A(+3%) | ||||||
Number of cells(Pcs) | 36PCS | ||||||
Size of module(mm) | 535*340*17mm(+/-0.2mm) | ||||||
Maximum system voltage(V) | 600V | ||||||
Temperature Range | -400C~+850C | ||||||
Front | 3.2mm tempered glass | ||||||
Encapsulate | EVA | ||||||
Back(PET): | 0.2mm PET | ||||||
Cell Efficiency(%) | >21% | ||||||
Solar module conversion efficiency(%) | >14.5% | ||||||
Output tolerance(%) | +3% | ||||||
Charging regulated output | 12V | ||||||
Charging line length (mm) | 400mm(2*0.75mm²) | ||||||
Wiring(with alligator clip)(mm) | 1500mm(2*0.75mm²) | ||||||
Wiring (with car charger)(mm) | 1500mm(2*0.75mm²) |
