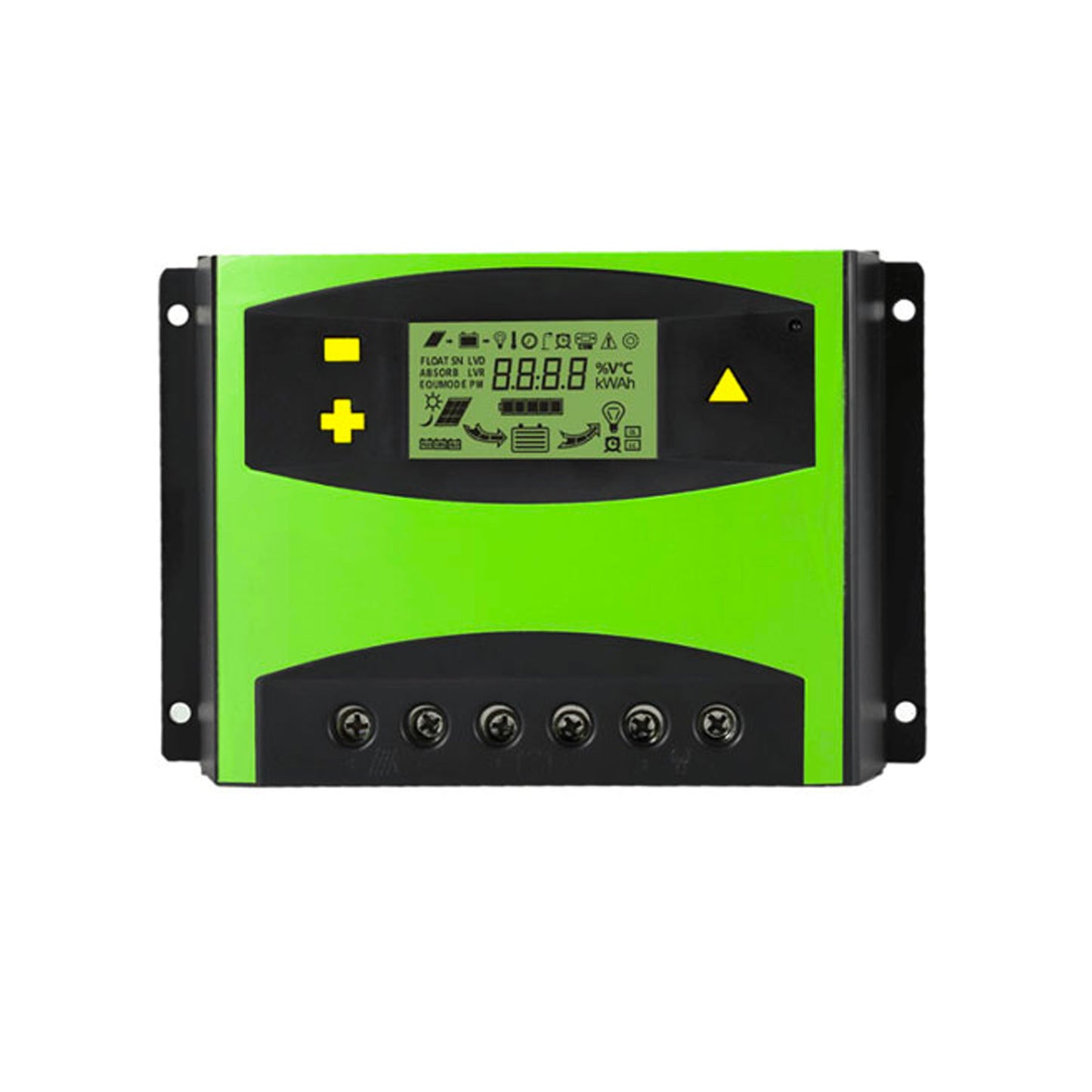

PWM 20A 30A 30A 40A 50A 60A VanderPro Solar Controller with Dual USB Interface LCD Display Solar PV Charge Regulators 12V 24V 48V
PWM 20A 30A 30A 40A 50A 60A VanderPro Solar Controller with Dual USB Interface LCD Display Solar PV Charge Regulators 12V 24V 48V
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
per
Couldn't load pickup availability
|
Model
|
Icharger pwm LS20A
|
Icharger pwm LS30A
|
Icharger pwm LS40A
|
Icharger pwm LS50A
|
Icharger pwm LS60A
|
|
System voltage
|
12V /24 V,24V/48V,(Automatica Ily switch)
|
||||
|
The maximum voltage of the solar panel input
|
50V(12V /24V),100v(24V/48V)
|
||||
|
Self loss
|
13MA
|
||||
|
Maximum charge current
|
20A
|
30A
|
40A
|
50A
|
60A
|
|
Maximum discharge current
|
20A
|
30A
|
40A
|
50A
|
60A
|
|
LVD
|
10.SV(9-11V),21V(18-22V),42V(36-44V)
|
||||
|
LVR
|
12.6V(11-13.5V),2 5.2V (2 2-27V), 50.4V(44-54V)
|
||||
|
Floating voltage
|
13 .8V (13-15V),27.6V(2 6-30V), 5 5.2V (5 2-60V)
|
||||
|
Increase the charge
|
14.4V/28.8V/57.6V The battery voltage is below 12V/24V/48V Start extra charge for 2 hours.
|
||||
|
Battery overpressure protection
|
15V/30V/60V
|
||||
|
Input reverse connection protection
|
Yes
|
||||
|
Load over current protection
|
Yes, every two seconds to restart
|
||||
|
Charging mode
|
PWM
|
||||
|
Temperature compensation
|
-24mv/°C,-48mv /°C,-96mv /°C, Relative to 12V/24V/48V sy st em
|
||||
|
Operating temperature
|
-20°C-+SS°C
|
||||
|
Terminal scale
|
28-lOAWG
|
||||
|
Waterproof level
|
IP 32
|
||||
|
Product Size(mm)
|
20-30A(187×90×47mm)
|
40A(195×107×50mm)
|
50-60A(187×122×57mm)
|
||
|
Packing size(mm)
|
200×102×53mm
|
210×118×59mm
|
200×132×63mm
|
||
